Product features:
The shell adopted the integral box structure design, and the steel plate surface is added with high anti-corosionspraying, which is beautiful;
The condensing area ranges from 80 to 1600m2, which can be widely used in air conditioning, refrigeration, refrigeration, health, medicine, agriculture, chemical industry, and other industries; O its main features are: v, W-shaped condenser, large windward side, good heat transfer effect, can be widely used in condensing units,
The fan is a 7-blade 6-pale external rotor, which runs stably and has low noise;

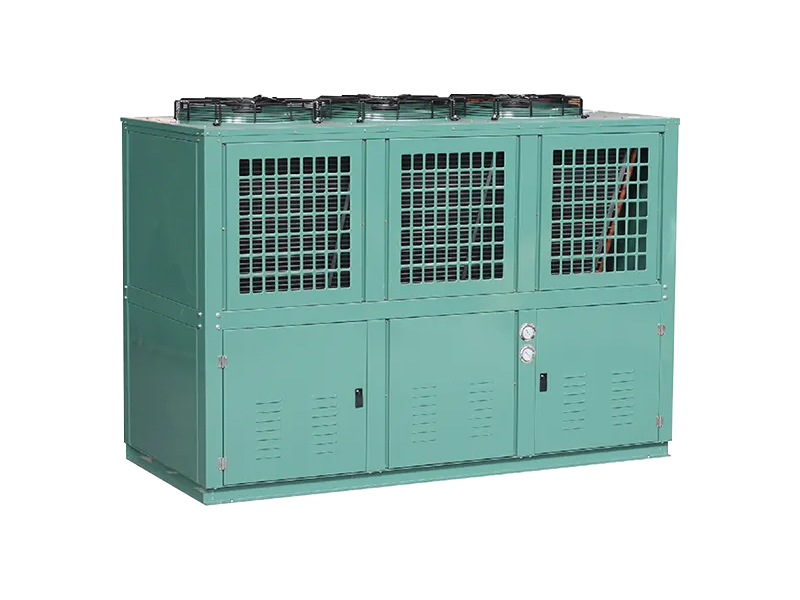

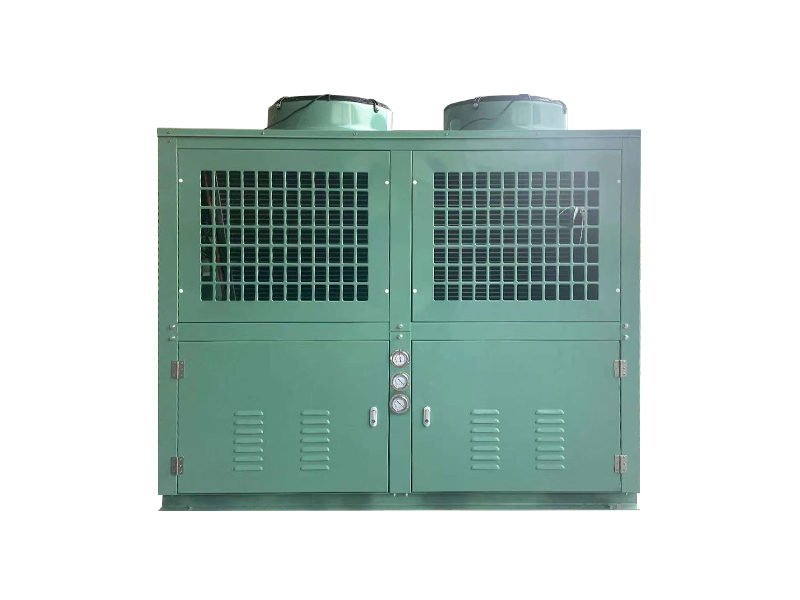

Medium And High Temperature Air-cooled Condensing Unit Semi-hermetic Series
Model of units | XB-FNV-15 | XB-FNV-20 | XB-FNU-25 | XB-FNU-30 | XB-FNU-40 | XB-FNU-50 | ||
Compressor model | 4PES-15 | 4NES-20 | 4HE-25 | 4GE-30 | 6GE-40 | 6FE-50 | ||
Applicable evaporation temperature (℃) | -5℃~-15℃ | |||||||
Refrigerant | R22 | |||||||
Power supply | 380V/50HZ | |||||||
Condenser | Quantity of Fan (only) | 2 | 2 | 3 | 3 | 3 | 4 | |
Power of Fan(W) | 2*320 | 2*550 | 2*320 | 2*550 | 3*580 | 4*580 | ||
Compressor unit Cooling capacity | Evaporation temperature -5℃ | Cooling capacity | 29200 | 33800 | 4350 | 51500 | / | / |
Electric power(w) | 9900 | 11990 | 15130 | 17840 | / | / | ||
Evaporation temperature -15℃ | Cooling capacity | 18540 | 21400 | 27700 | 31900 | / | / | |
Electric power(w) | 8640 | 9930 | 12760 | 15100 | / | / | ||
Coupling | Tube coupling | Φ16 | Φ19 | Φ22 | Φ22 | Φ28 | Φ28 | |
Suction coupling | Φ35 | Φ42 | Φ54 | Φ54 | Φ54 | Φ54 | ||
Dimensions | Length (A)mm | 1800 | 1800 | 2120 | 2390 | 2120 | 2390 | |
Width (B)mm | 950 | 990 | 990 | 990 | 990 | 990 | ||
Height (H)mm | 1700 | 1740 | 1740 | 1740 | 1740 | 1740 | ||
Installation dimensions | Length (D)mm | 1560 | 1560 | 1880 | 2150 | / | / | |
Width (E)mm | 910 | 910 | 950 | 950 | / | / | ||
Unit standard configuration: compressor, shock absorption tube, oil separation (optional), condenser, liquid reservoir, filter, solenoid valve, oil pressure difference (selection), pressure control, pressure gauge, junction box, etc.; configuration can be increased or decreased according to requirements; |
The cooling capacity and electric power in the table are based on the ambient temperature of 32℃
Model of units | XB-FNV-40MH | XB-FNV-50MH | ||||
Compressor model | 6GE-40 | 6FE-50 | ||||
Applicable evaporation temperature (℃) | -5℃~-15℃ | |||||
Refrigerant | R22 | |||||
Power supply | 380V/50HZ | |||||
Condenser | Quantity of Fan | 3 | 4 | |||
Power of Fan(W) | 3*580 | 4*580 | ||||
Compressor unit Cooling capacity | Evaporation temperature -5℃ | Cooling capacity | 74900 | 88700 | ||
Electric power(w) | 27.1 | 34.2 | ||||
Evaporation temperature -15℃ | Cooling capacity | 47400 | 58380 | |||
Electric power(w) | 23300 | 28700 | ||||
Coupling | Tube coupling | Φ22 | Φ22 | Φ22 | Φ28 | |
Suction coupling | Φ54 | Φ54 | Φ54 | Φ66 | ||
Dimensions | Length (A)mm | 2670 | 2400 | 2740 | 3100 | |
Width (B)mm | 990 | 1090 | 1090 | 1090 | ||
Height (H)mm | 1740 | 1740 | 1740 | 1740 | ||
Installation dimensions | Length (D)mm | 2430 | 2160 | 2500 | 2860 | |
Width (E)mm | 950 | 1050 | 1050 | 1050 | ||
Unit standard configuration: compressor, gas separator (optional), shock absorber tube, oil separator, condenser, liquid reservoir, filter, solenoid valve, oil pressure difference, pressure control, pressure gauge, junction box, etc.; configuration can be increased or decreased according to requirements; |
Explain
The cooling capacity and electric power in the table are based on the ambient temperature of 32℃
