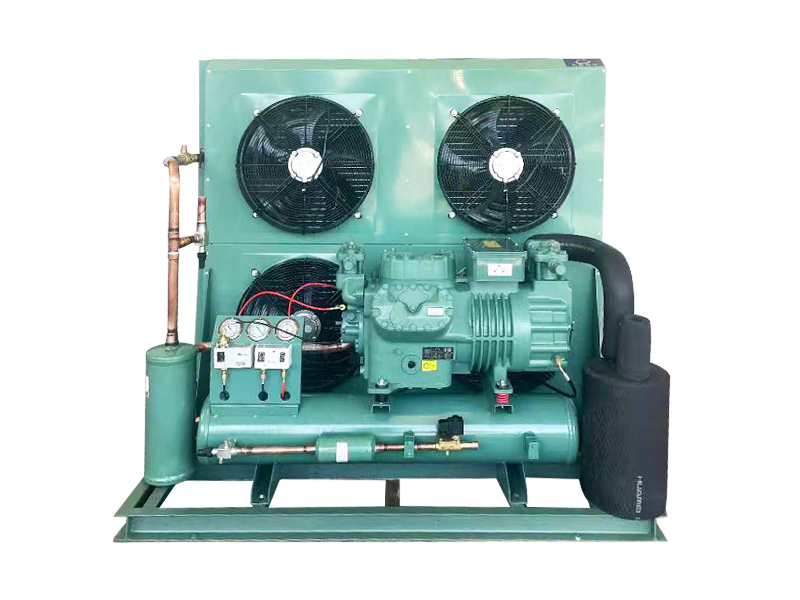

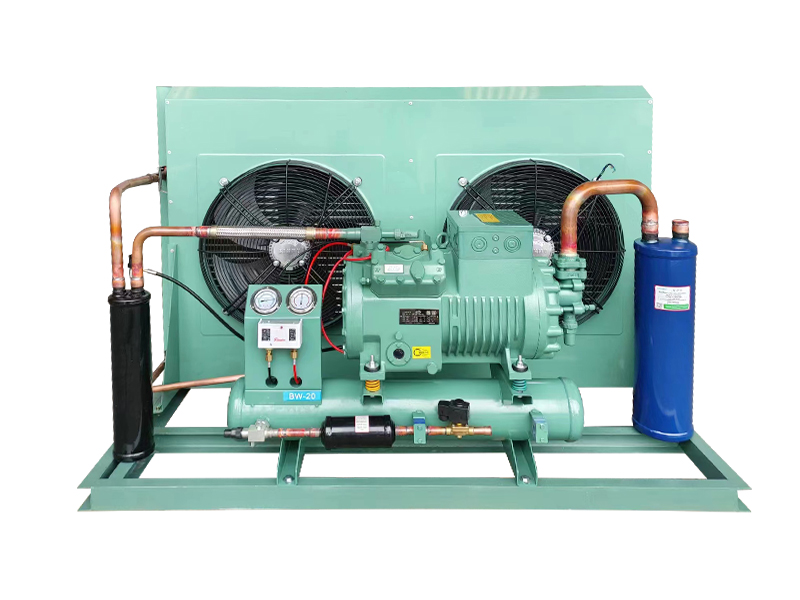

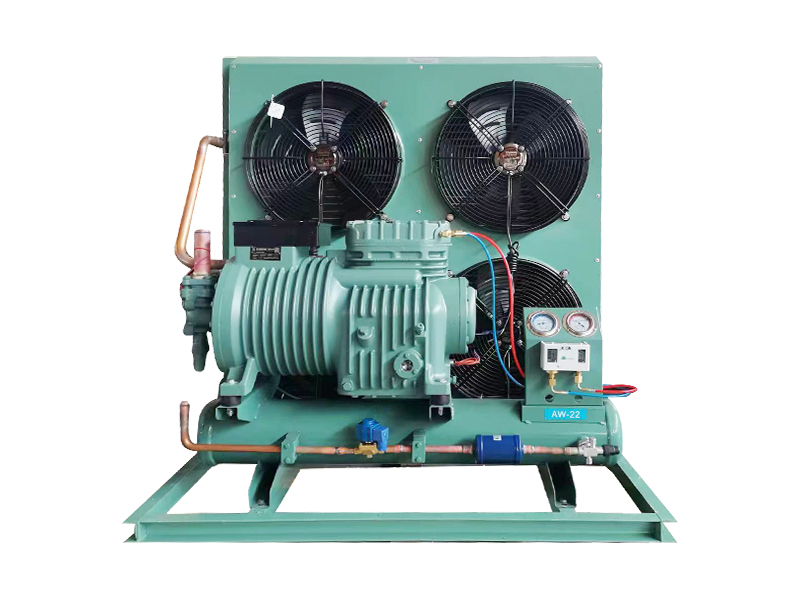

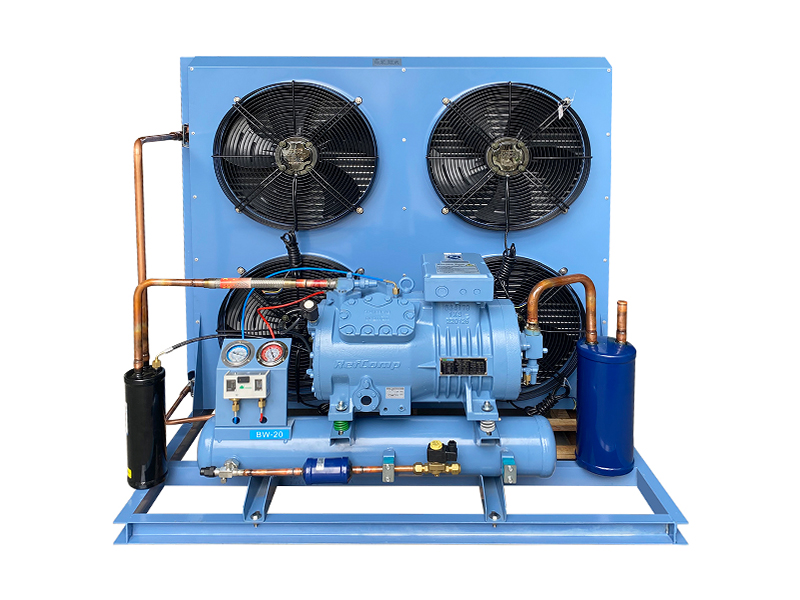

Open-type condensing unit is a device that uses the physical transformation of refrigerants for cooling. It mainly consists of a compressor, condenser, expansion valve, and evaporator. The compressor increases the temperature and pressure of the low-temperature, low-pressure refrigerant, then the high-temperature, high-pressure refrigerant enters the condenser, where it cools and condenses from a gas to a liquid, releasing heat. Finally, the refrigerant is depressurized and cooled through the expansion valve, becoming a low-temperature, low-pressure refrigerant, and enters the evaporator for cooling. The unit provides efficient and stable cooling services, with advanced refrigeration technology and optimized heat dissipation design to reduce energy consumption.
Parameters Of Piston Air Cooling Unit (High Temperature)
Model | Condensation temperature (℃) | Evaporation temperature | Compressor power | Suction pipe diameter | Diameter of liquid supply | Compressor model | Air cooling parameters | |||
+7.2℃ | 0℃ | -10℃ | Air volume | Power | ||||||
XBBH02A | 45 | 6.81 | 5.27 | 3.57 | 1.5 | 16 | 10 | 2GES-2 | 3400 | 180 |
XBBH03A | 45 | 12.67 | 9.74 | 6.53 | 2.25 | 22 | 10 | 2DES-3 | 4400 | 180 |
XBBH04A | 45 | 15.51 | 11.96 | 8.07 | 3 | 22 | 10 | 2CES-4 | 6800 | 180*2 |
XBBH05A | 45 | 16.79 | 12.84 | 8.53 | 3.75 | 22 | 10 | 4FES-5 | 6800 | 180*2 |
XBBH06A | 45 | 21.3 | 16.31 | 10.88 | 4.5 | 28 | 12 | 4EES-6 | 6800 | 250*2 |
XBBH07A | 45 | 25.3 | 19.45 | 13.03 | 5.25 | 28 | 16 | 4DES-7 | 8800 | 250*2 |
XBBH09A | 45 | 31 | 23.9 | 16.1 | 6.75 | 28 | 16 | 4CES-9 | 13600 | 414*2 |
XBBH10A | 45 | 34.2 | 26.1 | 17.18 | 7.5 | 28 | 16 | 4VES-10 | 13600 | 414*2 |
XBBH12A | 45 | 41.1 | 31.4 | 20.8 | 9 | 35 | 16 | 4TES-12 | 13600 | 600*2 |
XBBH15A | 45 | 47.4 | 36.1 | 23.7 | 11.25 | 42 | 16 | 4PES-15 | 19200 | 600*2 |
XBBH20A | 45 | 55.6 | 42.5 | 28.1 | 15 | 42 | 22 | 4NES-20 | 19200 | 800*2 |
XBBH25A | 45 | 73.7 | 56.5 | 37.6 | 18.75 | 54 | 22 | 4HE-25 | 21600 | 600*4 |
XBBH30A | 45 | 85.3 | 65.5 | 43.7 | 22.5 | 54 | 22 | 4GE-30 | 26100 | 600*3 |
XBBH40A | 45 | 127 | 97.3 | 64.7 | 30 | 54 | 28 | 6GE-40 | 36600 | 800*3 |
XBBH50A | 45 | 152.6 | 117.1 | 78.1 | 37.5 | 54 | 28 | 6FE-50 | 36600 | 800*3 |
Parameters Of Piston Air Cooling Unit (Low Temperature)
Model | Condensation temperature (℃) | Evaporation temperature | Compressor power | Suction pipe diameter | Diameter of liquid supply | Compressor model | Air cooling parameters | |||
-23℃ | -30℃ | -35℃ | Air volume | Power | ||||||
XBBL02W | 45 | 2.43 | 1.68 | 1.25 | 1.5 | 16 | 10 | 2FES-2 | 3400 | 180 |
XBBL03W | 45 | 4.45 | 3.03 | 2.2 | 2.25 | 22 | 10 | 2CES-3 | 4400 | 180 |
XBBL04W | 45 | 5.86 | 3.92 | 2.8 | 3 | 28 | 10 | 4EES-4 | 6800 | 180*2 |
XBBL05W | 45 | 7.08 | 4.78 | 3.45 | 3.75 | 28 | 10 | 4DES-5 | 6800 | 180*2 |
XBBL06W | 45 | 8.88 | 6.06 | 4.44 | 4.5 | 28 | 12 | 4CES-6 | 6800 | 250*2 |
XBBL09W | 45 | 11 | 7.4 | 5.25 | 6.75 | 35 | 16 | 4TES-9 | 8800 | 250*2 |
XBBL12W | 45 | 12.24 | 8.59 | 6.08 | 9 | 35 | 16 | 4PES-12 | 13600 | 414*2 |
XBBL14W | 45 | 14.72 | 10.02 | 7.09 | 10.5 | 35 | 16 | 4NES-14 | 13600 | 414*2 |
XBBL18W | 45 | 19.89 | 12.61 | 8.8 | 13.5 | 42 | 16 | 4HE-18 | 13600 | 600*2 |
XBBL23W | 45 | 24.1 | 14.67 | 10.26 | 15 | 54 | 22 | 4GE-23 | 19200 | 800*2 |
XBBL28W | 45 | 30.7 | 18.92 | 13.19 | 21 | 54 | 22 | 6HE-28 | 21600 | 600*4 |
XBBL34W | 45 | 35.5 | 22 | 15.39 | 25.5 | 54 | 22 | 6GE-34 | 26100 | 600*6 |
XBBL44W | 45 | 43.1 | 26.7 | 18.87 | 33 | 54 | 28 | 6FE-44 | 32400 | 780*6 |
