Eletrical Defrost Evaporator are cooling devices suitable for various large, medium, and small cold storage facilities (such as frozen food and storage preservation). The electric defrost air cooler comes in three forms: DL, DD, and DJ types, which are suitable for cold storage with different temperatures.
This series of products has the following characteristics:
○ Rational structure, even frost distribution, and high heat exchange efficiency;
○ The outer casing is made of high-quality steel plates, surface-coated for corrosion resistance, with an elegant appearance;
○ Special fan motors ensure low noise, large airflow, and smooth operation;
○ Stainless steel U-shaped tubular electric heaters with strong insulation properties are inserted into the fins, ensuring short defrosting time and excellent results;
○ The casing material can be customized using embossed aluminum sheets or stainless steel according to customer requirements;
○ The air cooler undergoes testing at 2.8 MPa pressure to ensure product stability during use.
DL Ceiling Mounted High-temperature Air Cooler
Model | Ref. capacity (KW) | Cooling Area(㎡) | Sheet spacing | Fan | Defrost heater | |||||||
Qty | Blade Diameter (mm) | Air volume (m³/h) | Pressure (pa) | Power (w) | Power Supply | Coil (kw) | Water pan (kw) | Power Supply | ||||
DL-2.1/10 | 2.1 | 10 | 4.5 | 1 | 350 | 2700 | 90 | 180 | 220v/380v 50HZ 1Ph/3Ph | 0.8 | 0.8 | 220V 50Hz 1PH |
DL-3.1/15 | 3.1 | 15 | 2 | 300 | 2*2000 | 60 | 2*85 | 1 | 1.0 | |||
DL-4.2/20 | 4.2 | 20 | 2 | 350 | 2*2700 | 90 | 2*180 | 1.1 | 1.1 | |||
DL-5.2/25 | 5.2 | 25 | 2 | 350 | 2*2700 | 90 | 2*180 | 380v 50Hz 3Ph | 1.2 | 1.2 | ||
DL-8.2/40 | 8.2 | 40 | 2 | 400 | 2*4000 | 100 | 2*230 | 3.4 | 1.7 | |||
DL-11.5/55 | 11.5 | 55 | 2 | 400 | 2*4000 | 100 | 2*230 | 3.4 | 1.7 | |||
DL-16.7/80 | 16.7 | 80 | 2 | 500 | 2*6600 | 125 | 2*460 | 3.6 | 1.8 | |||
DL-22.0/105 | 22 | 105 | 2 | 500 | 2*6600 | 125 | 2*460 | 5.7 | 1.9 | |||
DL-25.8/125 | 25.8 | 125 | 3 | 500 | 3*6600 | 125 | 3*460 | 8 | 2.0 | |||
DL-35.6/160 | 33.6 | 160 | 3 | 500 | 3*6600 | 125 | 3*460 | 8.4 | 2.1 | |||
DL-38.7/185 | 38.7 | 185 | 4 | 500 | 4*6600 | 125 | 4*460 | 8.8 | 2.2 | |||
DL-44.0/210 | 44 | 210 | 4 | 500 | 4*6600 | 125 | 4*460 | 9.6 | 2.4 | |||
DL-52.9/260 | 52.9 | 260 | 2 | 600 | 2*10000 | 200 | 2*1100 | 14 | 2.0 | |||
DL-67.2/330 | 67.2 | 330 | 3 | 600 | 3*10000 | 200 | 3*1500 | 14.7 | 2.1 | |||
DL-83.4/410 | 83.4 | 410 | 3 | 600 | 3*10000 | 200 | 3*1500 | 15.4 | 2.2 |
Note: The data in the table is based on the use of R22 refrigerant, at T (library)=0℃, ΛT=10℃.
DD Ceiling Type Medium Temperature Air Cooler
Model | Ref. capacity (KW) | Cooling Area (㎡) | Sheet spacing | Fan | Defrost heater | |||||||
Qty | Blade Diameter (mm) | Air volume (m³/h) | Pressure (pa) | Power (w) | Power Supply | Coil (kw) | Water pan (kw) | Power Supply | ||||
DD-1.4/7 | 1.4 | 7 | 6 | 1 | 350 | 2700 | 90 | 180 | 220V/380V 50Hz lPh/3Ph | 0.8 | 0.8 | 220V 50Hz 1PH |
DD-2.35/12 | 2.35 | 12 | 2 | 300 | 2×2000 | 60 | 2x85 | 1.0 | 1.0 | |||
DD-3.0/15 | 3.0 | 15 | 2 | 350 | 2×2700 | 90 | 2x180 | 1.1 | 1.1 | |||
DD-4.0/22 | 4.0 | 22 | 2 | 350 | 2×2700 | 90 | 2x180 | 380V 50Hz 3Ph | 1.2 | 1.2 | ||
DD-6.0/30 | 6.0 | 30 | 2 | 400 | 2×4000 | 100 | 2x230 | 3.4 | 1.7 | |||
DD-8.0/40 | 8.0 | 40 | 2 | 400 | 2×4000 | 100 | 2x230 | 3.4 | 1.7 | |||
DD-12.0/60 | 12.0 | 60 | 2 | 500 | 2×6600 | 125 | 2x460 | 5.4 | 1.8 | |||
DD-15.9/80 | 15.9 | 80 | 2 | 500 | 2×6600 | 125 | 2x460 | 7.1 | 1.9 | |||
DD-20.0/100 | 20.0 | 100 | 3 | 500 | 3×6600 | 125 | 3x460 | 10.0 | 2.0 | |||
DD-24.0/120 | 24.0 | 120 | 3 | 500 | 3×6600 | 125 | 3x460 | 10.5 | 2.1 | |||
DD-28.0/140 | 28.0 | 140 | 4 | 500 | 4×6600 | 125 | 4x460 | 11.0 | 2.2 | |||
DD-32.1/160 | 32.1 | 160 | 4 | 500 | 4×6600 | 125 | 4x460 | 12.0 | 2.4 | |||
DD-37.4/200 | 37.4 | 200 | 2 | 600 | 2×10000 | 200 | 2x1500 | 16.0 | 2.0 | |||
DD-46.8/250 | 46.8 | 250 | 3 | 600 | 3×10000 | 200 | 3x1500 | 16.8 | 2.1 | |||
DD-56.2/310 | 56.2 | 310 | 3 | 600 | 3×10000 | 200 | 3x1500 | 17.6 | 2.2 |
Note: The data in the table is based on the use of R22 refrigerant, at T(library)=0℃, ΛT=10℃.
DJ Ceiling Type Low-temperature Air Cooler
Model |
Ref. capacity (KW) |
Cooling Area (㎡) | Sheet spacing | Fan | Defrost heater | |||||||
Qty | Blade Diameter (mm) | Air volume (m³/h) |
Pressure (pa) |
Power (w) | Power Supply | Coil (kw) | Water pan (kw) | Power Supply | ||||
DJ-0.85/5 | 0.85 | 5 | 4.5 | 1 | 350 | 2700 | 90 | 180 | 220V/380V 50Hz lPh/3Ph | 1 | 1 | 220V 50Hz 1PH |
DJ-1.3/10 | 1.3 | 10 | 2 | 300 | 2×2000 | 60 | 2×85 | 1.1 | 1.1 | |||
DJ-2.3/15 | 2.3 | 15 | 2 | 350 | 2×2700 | 90 | 2×180 | 1.2 | 1.2 | |||
DJ-4.0/20 | 4.0 | 20 | 2 | 400 | 2×4000 | 100 | 2×230 | 380V 50Hz 3Ph | 3.4 | 1.7 | ||
DJ-5.1/30 | 5.1 | 30 | 2 | 400 | 2×4000 | 100 | 2×230 | 3.4 | 1.7 | |||
DJ-7.8/40 | 7.8 | 40 | 2 | 500 | 2×6600 | 125 | 2×460 | 5.4 | 1.8 | |||
DJ-9.5/55 | 9.5 | 55 | 2 | 500 | 2×6600 | 125 | 2×460 | 7.6 | 1.9 | |||
DJ-12.8/70 | 12.8 | 70 | 3 | 500 | 3×6600 | 125 | 3×460 | 10.0 | 2.0 | |||
DJ-15.7/85 | 15.7 | 85 | 3 | 500 | 3×6600 | 125 | 3×460 | 10.5 | 2.1 | |||
DJ-18.5/100 | 18.5 | 100 | 4 | 500 | 4×6600 | 125 | 4×460 | 11 | 2.2 | |||
DJ-21.6/115 | 21.6 | 115 | 4 | 500 | 4×6600 | 125 | 4×460 | 12 | 2.4 | |||
DJ-23.8/140 | 23.8 | 140 | 2 | 600 | 2×10000 | 200 | 2×1500 | 16.0 | 2.0 | |||
DJ-29.0/170 | 29 | 170 | 3 | 600 | 3×10000 | 200 | 3×1500 | 16.8 | 2.1 | |||
DJ-35.9/210 | 35.9 | 210 | 3 | 600 | 3×10000 | 200 | 3×1500 | 17.6 | 2.1 |
Note: The data in the table is based on the use of R22 refrigerant, at T (library)=0℃, ΛT=10℃

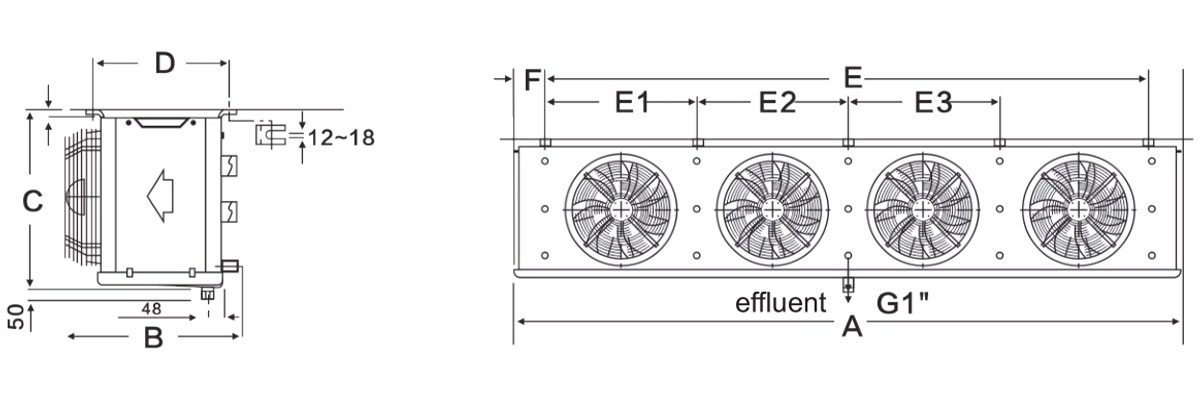

External Dimensions And Installation Dimensions Of Ceiling Mounted Air Coolers
Model | A | B | C | D | E | E1 | E2 | E3 | F | Inlet tube( Φ mm) | Back trachea(Φ mm) | Drainpipe |
DL-2.1/10 | 760 | 390 | 460 | 240 | 530 | / | / | / | 80 | 12 | 22 | G1" |
DD-1.4/7 | ||||||||||||
DL-3.1/15 | 1010 | 390 | 460 | 240 | 780 | / | / | / | ||||
DD-2.35/12 | ||||||||||||
DJ-1.2/7 | ||||||||||||
DL-4.2/20 | 1160 | 350 | 465 | 240 | 930 | / | / | / | ||||
DD-3.0/15 | ||||||||||||
DJ-1.32/10 | ||||||||||||
DL-5.2/25 | 1310 | 430 | 460 | 310 | 1080 | / | / | / | 12 | 22 | ||
DD-4.0/22 | ||||||||||||
DJ-2.3/15 | ||||||||||||
DL-8.2/40 | 1535 | 530 | 580 | 375 | 1280 | 625 | 655 | / | 16 | 25 | ||
DD-6.0/30 | ||||||||||||
DJ-4.0/20 | ||||||||||||
DL-11.5/55 | 1535 | 530 | 580 | 375 | 1280 | 625 | 655 | / | ||||
DD-8.0/40 | ||||||||||||
DJ-5.1/30 | ||||||||||||
DL-16.7/80 | 1795 | 690 | 680 | 450 | 1530 | 750 | 780 | / | 95 | 19 | 38 | |
DD-12.0/60 | ||||||||||||
DJ-7.8/40 | ||||||||||||
DL-22.0/105 | 1795 | 690 | 680 | 450 | 1530 | 750 | 780 | / | ||||
DD-15.9/80 | ||||||||||||
DJ-9.5/55 | ||||||||||||
DL-25.8/125 | 2275 | 690 | 680 | 450 | 2010 | 660 | 660 | 690 | 38 | G1.5" | ||
DD-20.0/100 | ||||||||||||
DJ-12.8/70 | ||||||||||||
DL-35.6/160 | 2695 | 690 | 680 | 450 | 2430 | 800 | 800 | 830 | ||||
DD 24.0/120 | ||||||||||||
DJ-15.7/85 | ||||||||||||
DL-38.5/185 | 3095 | 690 | 680 | 450 | 2830 | 700 | 700 | 730 | 25 | 50 | ||
DD-28.0/140 | ||||||||||||
DJ-18.5/100 | ||||||||||||
DL-44.0/210 | 3495 | 690 | 680 | 450 | 3230 | 800 | 800 | 830 | ||||
DD-32.1/160 | ||||||||||||
DJ-21.6/115 | ||||||||||||
DL-52.5/260 | 2200 | 980 | 890 | 605 | 1950 | 950 | 1000 | / | ||||
DD-37.4/200 | ||||||||||||
DJ-23.8/140 | ||||||||||||
DL-67.2/330 | 2700 | 980 | 890 | 605 | 2450 | 800 | 800 | 850 | ||||
DD-46.8/250 | ||||||||||||
DJ-29.0/170 | ||||||||||||
DL-83.4/410 | 3190 | 980 | 890 | 605 | 2930 | 960 | 960 | 1010 | ||||
DD-56.2/310 | ||||||||||||
DJ-35.9/210 |
