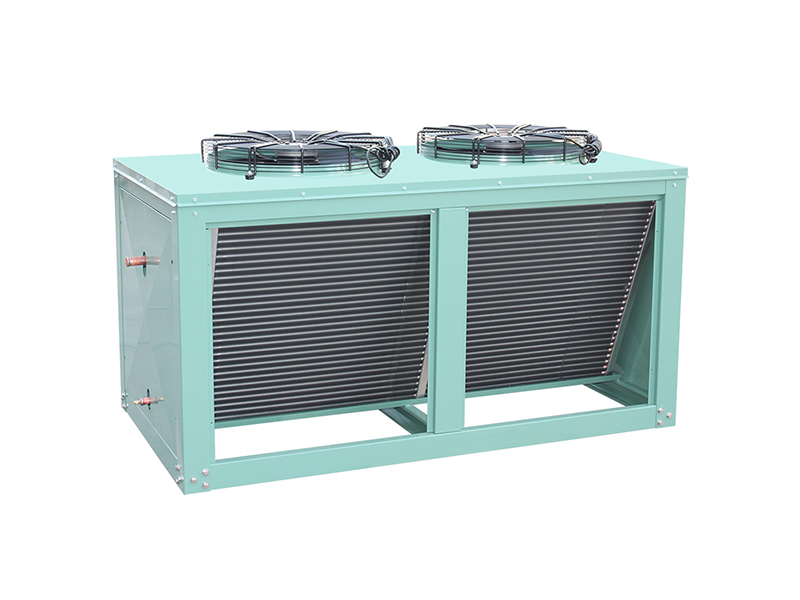

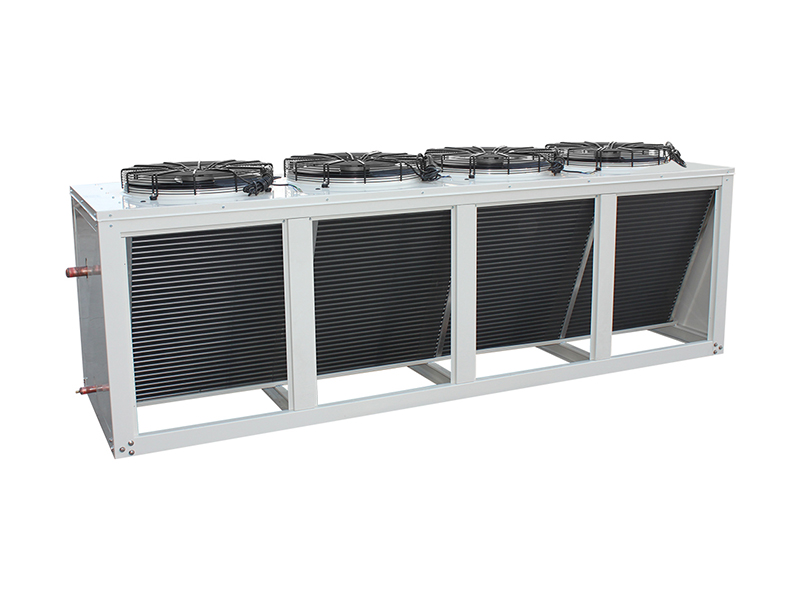

FNV Air-cooled condenser is specifically designed as a heat dissipation device for refrigeration equipment using refrigerants like Freon. It utilizes air convection to dissipate the heat released by the refrigerant during the condensation process, ensuring the normal operation of the refrigeration system. The condenser has high airtightness, ensuring no leakage under high pressure. It is equipped with an external rotor fan, which operates with low noise.
Main Technical Parameters Of FNV Air-cooled Condenser
Model | Heat exchang capacity (KW) | Cooling Area (㎡) | Fan | ||||
Qty | Blade Diameter(mm) | Air volume (m³/h) | Power (W) | Voltage(V) | |||
FNV-24.6/80 | 24.6 | 80 | 2 | 450 | 2x4700 | 2x280 | 380 |
FNV-27.5/90 | 27.5 | 90 | 2 | 450 | 2x4700 | 2x280 | 380 |
FNV-31.0/100 | 31 | 100 | 2 | 500 | 2x6600 | 2x460 | 380 |
FNV-34.4/120 | 34.4 | 120 | 2 | 550 | 2x8660 | 2x650 | 380 |
FNV-44.2/155 | 44.2 | 155 | 2 | 550 | 2x8660 | 2x650 | 380 |
FNV-55.8/185 | 55.8 | 185 | 2 | 600 | 2x10600 | 2x860 | 380 |
FNV-61.6/200 | 61.6 | 200 | 2 | 600 | 2x10600 | 2x860 | 380 |
FNV-67.4/220 | 67.4 | 220 | 3 | 550 | 3x8660 | 3x650 | 380 |
FNV-73.9/240 | 73.9 | 240 | 3 | 550 | 3x8660 | 3x650 | 380 |
FNV-81.5/265 | 81.5 | 265 | 3 | 550 | 3x8660 | 3x650 | 380 |
FNV-92.4/300 | 92.4 | 300 | 3 | 600 | 3x10600 | 3x860 | 380 |
FNV-108.7/350 | 108.7 | 350 | 4 | 600 | 3x10600 | 4x860 | 380 |
FNV-123.7/400 | 123.7 | 400 | 4 | 600 | 4x10600 | 4x860 | 380 |

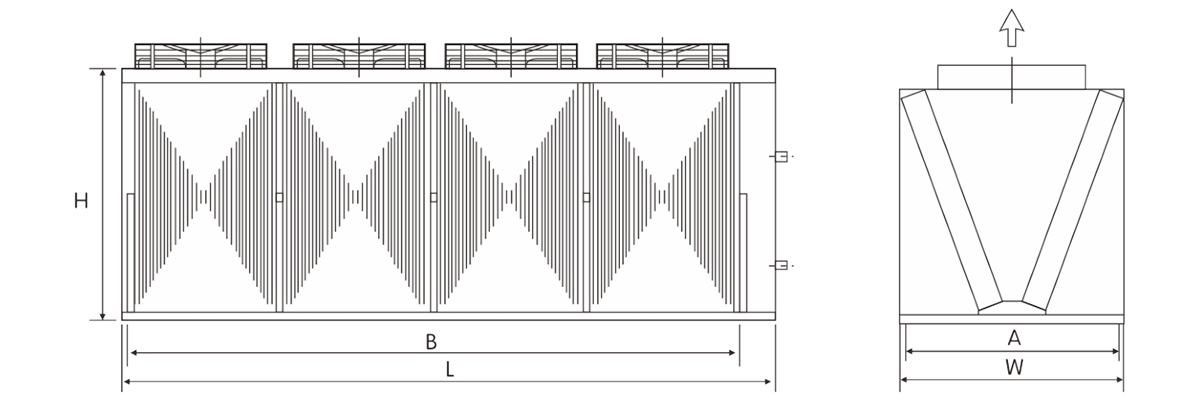

Appearance And Installation Dimensions Of FNV Air-cooled Condenser
Model | L | H | W | A | B | Inlet pipe(φmm) | Outlet tube(φmm) |
FNV-24.6/80 | 1180 | 610 | 840 | 760 | 1080 | φ25 | φ19 |
FNV-27.5/90 | 1300 | 610 | 840 | 760 | 1180 | φ25 | φ19 |
FNV-31.0/100 | 1420 | 615 | 840 | 760 | 1230 | φ25 | φ19 |
FNV-34.4/120 | 1470 | 745 | 860 | 780 | 1300 | φ28 | φ19 |
FNV-44.2/155 | 1660 | 850 | 920 | 800 | 1500 | φ32 | φ22 |
FNV-55.8/185 | 1900 | 850 | 920 | 800 | 1730 | φ32 | φ25 |
FNV-61.6/200 | 1900 | 940 | 955 | 820 | 1730 | φ32 | φ25 |
FNV-67.4/220 | 2240 | 850 | 920 | 800 | 1900 | φ32 | φ25 |
FNV-73.9/240 | 2240 | 940 | 955 | 820 | 2030 | φ32 | φ22 |
FNV-81.5/265 | 2450 | 940 | 955 | 820 | 2280 | φ32 | φ28 |
FNV-92.4/300 | 2740 | 940 | 955 | 820 | 2550 | φ35 | φ28 |
FNV-108.7/350 | 3080 | 940 | 955 | 820 | 2670 | φ42 | φ32 |
FNV-123.7/400 | 2880 | 940 | 1030 | 890 | 2660 | φ42 | φ32 |
