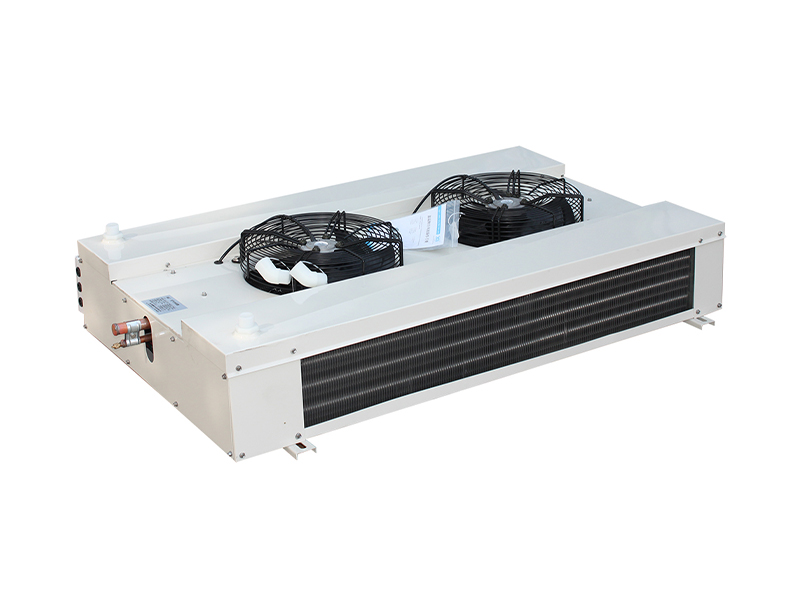

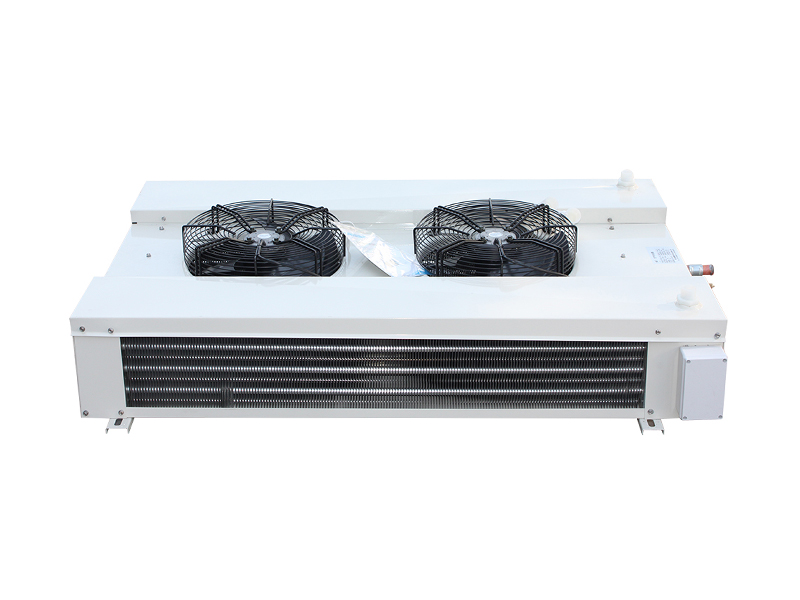

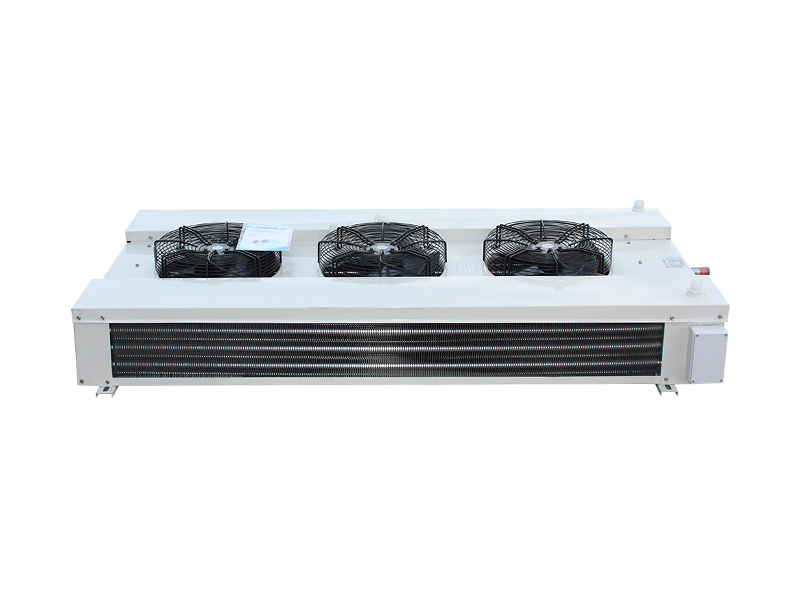

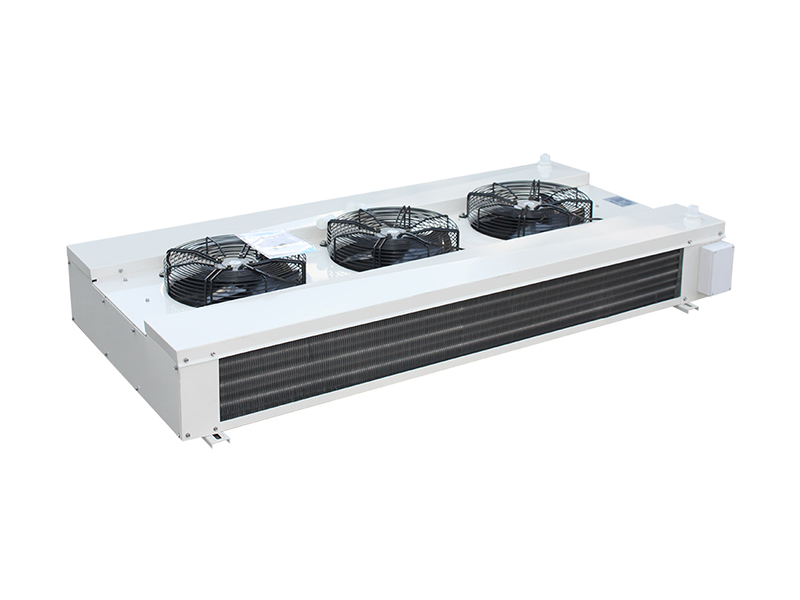

XBL Series Double Side Blow Evaporator are suitable for constant-temperature workshops and edible mushroom growing rooms. The product has a rational structure, low frost formation, low noise, low airspeed, and extremely high heat exchange efficiency.
This series of products has the following characteristics:
○ The outer casing is made of high-quality steel plates, surface-coated for corrosion resistance, with an elegant appearance;
○ Using an external rotor motor, the dual flow ensures gentle air delivery with minimal noise;
○ Stainless steel U-shaped tubular electric heaters with strong insulation properties are inserted into the fins, ensuring short defrosting time and excellent results.
DL Type Double Side Blow Air Cooler
Model | Ref.capacity(KW) | Cooling Area (㎡) | Sheet spacing | Fan | Electric heating tube | ||||||
Qty | Blade Diameter (mm) | Air volume (m³/h) | Range(m) | Power(w) | Voltage(v) | Coil (kw) | Voltage (v) | ||||
XBSL-55 | 11.5 | 55 | 4.5 | 3 | 350 | 3×2700 | 2x4 | 3x180 | 380/220 | 3.0 | 220 |
XBSL-80 | 16.8 | 80 | 3 | 400 | 3×4000 | 2x4 | 3x230 | 380/220 | 4.0 | 220 | |
XBSL-105 | 22.0 | 105 | 3 | 400 | 3×4000 | 2x4 | 3x230 | 380/220 | 5.0 | 220 | |
XBSL-125 | 25.8 | 125 | 3 | 450 | 3×4000 | 2x4 | 3x280 | 380/220 | 7.2 | 220 | |
XBSL-160 | 35.6 | 160 | 4 | 450 | 4×4700 | 2x4 | 4x280 | 380/220 | 10.6 | 220 | |
XBSL-185 | 38.5 | 185 | 5 | 450 | 5×4700 | 2x4 | 5x280 | 380/220 | 13.6 | 220 | |
XBSL-210 | 44.0 | 210 | 4 | 500 | 4×6600 | 2x4 | 4x460 | 380/220 | 15.8 | 220 | |
XBSL-260 | 52.5 | 260 | 5 | 500 | 5×6600 | 2x4 | 5x460 | 380/220 | 18.7 | 220 |
Note: The data in the table is based on the use of R22 refrigerant, at T(library)=0℃, ΛT=10℃.
DD Type Double Side Blow Air Cooler
Model | Ref. capacity (KW) | Cooling Area(㎡) | Sheet spacing | Fan | Electric heating tube | ||||||
Qty | Blade Diameter (mm) | Air volume (m³/h) | Range (m) | Power (w) | Voltage (v) | Coil (kw) | Voltage (v) | ||||
XBSD-40 | 8 | 40 | 6 | 3 | 350 | 3×2700 | 2×4 | 3×180 | 380/220 | 3.0 | 220 |
XBSD-60 | 12 | 60 | 3 | 400 | 3×4000 | 2×4 | 3×230 | 380/220 | 4.0 | 220 | |
XBSD-80 | 15.9 | 80 | 3 | 400 | 3×4000 | 2×4 | 3×230 | 380/220 | 5.5 | 220 | |
XBSD-100 | 20 | 100 | 3 | 450 | 3×4700 | 2×4 | 3×280 | 380/220 | 7.6 | 220 | |
XBSD-120 | 24 | 120 | 4 | 450 | 4×4700 | 2×4 | 4×280 | 380/220 | 11.5 | 220 | |
XBSD-140 | 28 | 140 | 5 | 450 | 5×4700 | 2×4 | 5×280 | 380/220 | 14.8 | 220 | |
XBSD-160 | 32.1 | 160 | 4 | 500 | 4×6600 | 2×4 | 4×460 | 380/220 | 17.2 | 220 | |
XBSD-200 | 37.4 | 200 | 5 | 500 | 5×6600 | 2×4 | 5×460 | 380/220 | 21.2 | 220 |
Note: The data in the table is based on the use of R22 refrigerant, at T (library)=0℃, ΛT=10℃

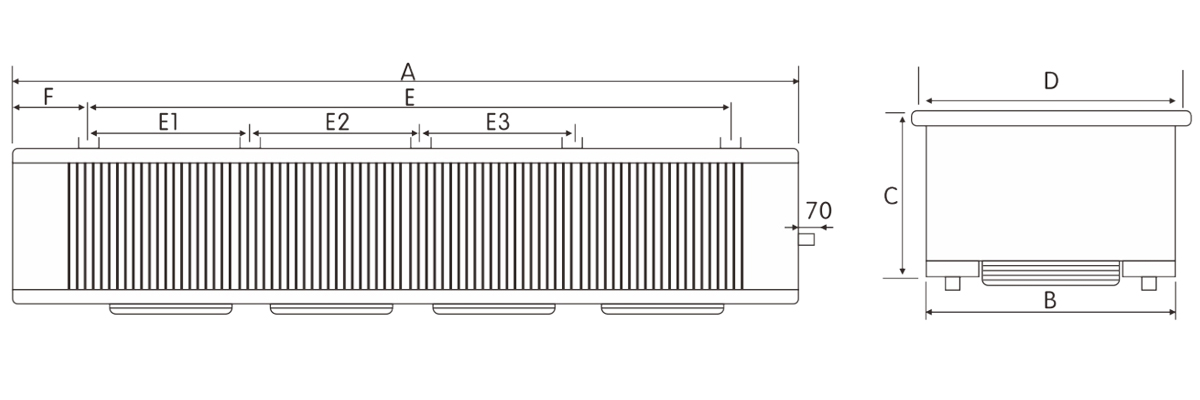

External Dimensions And Installation Dimensions Of Double Side Blow Air Cooler
Model | A | B | C | D | E | E1 | E2 | E3 | F | Inlet tube (Φmm) | Back trachea (Φmm) | Drainpipe |
XBSL-55 | 1750 | 830 | 295 | 855 | 1530 | / | / | / | 90 | 16 | 25 | G1 |
XBSD-40 | ||||||||||||
XBSL-80 | 1780 | 880 | 385 | 905 | 1530 | 500 | 500 | 530 | 90 | 19 | 32 | |
XBSD-60 | ||||||||||||
XBSL-105 | 2180 | 880 | 385 | 905 | 1930 | 633 | 633 | 664 | 95 | 19 | 32 | |
XBSD-80 | ||||||||||||
XBSL-125 | 2200 | 1015 | 405 | 1040 | 1950 | 640 | 640 | 640 | 95 | 19 | 35 | |
XBSD-100 | ||||||||||||
XBSL-160 | 2680 | 1015 | 405 | 1040 | 2430 | 600 | 600 | 600 | 95 | 19 | 35 | |
XBSD-120 | ||||||||||||
XBSL-185 | 2980 | 1020 | 385 | 1040 | 2730 | 540 | 540 | 540 | 95 | 19 | 35 | |
XBSD-140 | ||||||||||||
XBSL-210 | 2980 | 1160 | 405 | 1200 | 2730 | 675 | 675 | 675 | 95 | 25 | 42 | |
XBSD-160 | ||||||||||||
XBSL-260 | 3480 | 1330 | 585 | 1370 | 3230 | 640 | 640 | 640 | 95 | 25 | 42 | |
XBSD-200 |
