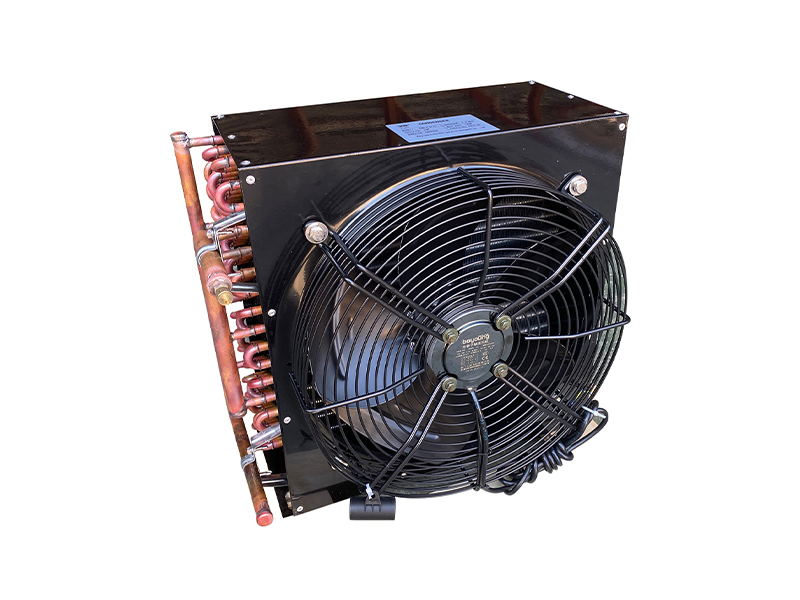

FNH Air-cooled Condenser

Contact Us
PREV：FNV Air-cooled CondenserNEXT：No Next Article
  • Description
  • Feedback

  • FNH Air-cooled condenser is an important component in refrigeration equipment. It primarily dissipates the heat released by the refrigerant during the condensation process through air convection, maintaining the normal operation of the refrigeration system. The product can be equipped with different types of condenser fans according to customer requirements to meet various heat dissipation needs.

    Technical Parameters Of FNH Type Air-cooled Condenser

    Model Heat exchange capacity (KW)

    Surface

    (㎡)

    		 Copper pipe arrangemrnt Fan
    Into Travhea(Φmm)

    Into Travhea

    (Φmm)

    Fluid Outlet

    (Φmm)
    Qty ΦFan(mm) Air volume (m³/h) Power(W) Voltage(V)
    FNH-0.6/2 0.6 2 2x4 1 200 780 55 220 10 10
    FNH-0.9/3 0.9 3 3x4 1 200 780 55 220 10 10
    FNH-1.2/4 1.2 4 3x5 1 250 970 80 220 10 10
    FNH-1.7/6 1.7 6 3x6 1 300 2040 1x85 220/380 10 10
    FNH-2.5/8.0 2.5 8 3x8 1 300 2040 1x85 220/380 10 10
    FNH-4.6/15 4.6 15 4x10 1 350 2700 1x180 220/380 19 16
    FNH-5.4/18 5.4 18 4x10 1 400 4000 1x230 380 19 16
    FNH-6.4/22 6.4 22 5x10 1 400 4000 1x230 380 19 16
    FNH-6.4/22B 6.4 22 4x8 2 350 5400 2x180 380 19 16
    FNH-7.3/28 7.3 28 4x9 2 350 5400 2x180 380 19 16
    FNH-9.7/33 9.7 33 4x10 2 350 5400 2x180 380 19 16
    FNH-12.0/41 12 41 4x12 2 400 8000 2x230 380 19 16
    FNH-13.8/50 13.8 50 4x14 2 400 8000 2x230 380 19 16
    FNH-16.7/60 16.7 58 4x14 2 400 8000 2x230 380 22 19
    FNH-20.7/70 20.7 70 4x18 4 350 10800 4x180 380 28 22
    FNH-23.0/80 23 80 4x20 4 400 16000 4x230 380 28 22
    FNH-27.6/100 27.6 100 5x20 4 400 16000 4x230 380 28 22
    FNH-33.3/120 33.3 120 5x24 4 400 16000 4x230 380 32 25
    FNH-39.8/140 39.8 140 5x24 4 450 18800 4x280 380 32 25
    FNH-45.6/160 45.6 160 5x26 4 450 18800 4x280 380 32 25
    FNH-49.9/180 49.9 180 5x26 4 500 26400 4x460 380 32 25

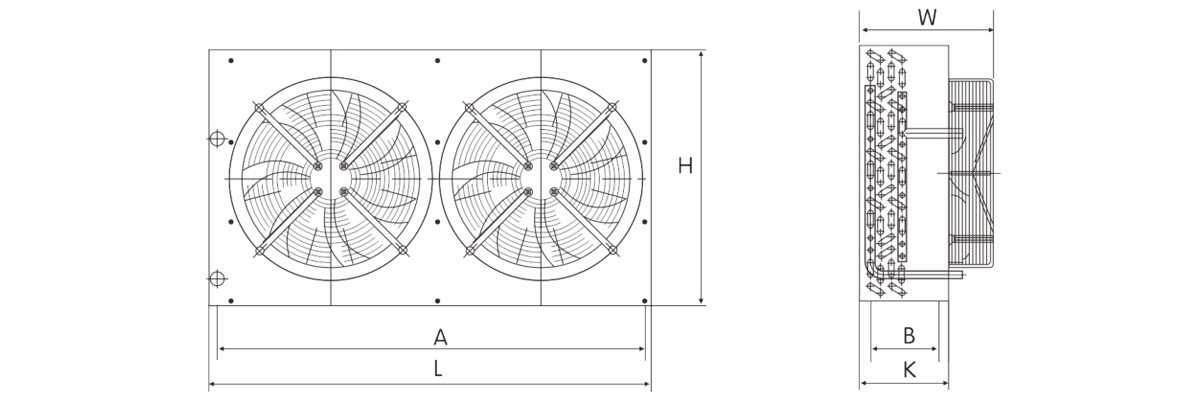

    Appearance And Installation Dimensions of FNH Type Air-cooled Condenser

    Model Overll dimensions
    L K H A B W
    FNH-0.6/2 280 95 240 260 65 140
    FNH-0.9/3 280 120 240 260 80 165
    FNH-1.2/4 300 120 290 280 80 175
    FNH-1.7/6 350 150 340 330 110 235
    FNH-2.5/8.0 450 150 435 420 100 250
    FNH-4.6/15 485 170 535 455 145 280
    FNH-5.4/18 520 180 535 490 145 290
    FNH-6.4/22 600 180 535 570 145 290
    FNH-6.4/22B 875 200 435 845 145 290
    FNH-7.3/28 875 200 485 845 145 290
    FNH-9.7/33 935 200 535 905 145 290
    FNH-12.0/41 935 200 635 905 145 290
    FNH-13.8/50 935 200 735 905 145 290
    FNH-16.2/58 1085 200 735 1055 145 290
    FNH-20.7/70 1085 200 935 1055 145 290
    FNH-23.0/80 1100 220 1035 1070 165 310
    FNH-27.6/100 1100 220 1035 1070 165 310
    FNH-33.3/120 1130 220 1035 1100 165 310
    FNH-39.8/140 1190 220 1235 1170 165 320
    FNH-45.6/160 1250 220 1335 1220 165 320
    FNH-49.9/180 1410 220 1335 1380 165 320

Related Products

About
Zhejiang Xinba Refrigeration Equipment Co., Ltd.
Zhejiang Xinba Refrigeration Equipment Co., Ltd. is located in the beautiful city of Zhejiang Province, close to the Yongjin Expressway, Shangsan Expressway, and Shaotai Expressway under construction, with a developed economy and convenient transportation. As a China FNH Air-cooled Condenser manufacturers and wholesale FNH Air-cooled Condenser factory, The company specializes in the production of refrigeration equipment and accessories such as air coolers, condensers, refrigeration units, etc. With rich professional knowledge and design experience, it constantly seeks innovation and change in technology, strictly requires product quality, and strives to provide the best quality refrigeration products and accessories for the fields of refrigeration systems such as food, chemicals, hotels, pharmaceuticals, electronics, vegetables, flowers, etc. It is well received for its stable quality and timely delivery, and we sincerely provide you with high-quality services with a professional spirit, so that you have no worries. We uphold the business philosophy of "green, efficient, honest and pragmatic", and achieving harmony between the social environment and interests has always been our unremitting pursuit. It has always been our unshirkable responsibility to be responsible for society, customers, and company employees. Looking to the future, we will continue to promote the innovation and development of refrigeration equipment and satisfy customers with high-quality services.
News
Condenser Industry Knowledge

FNH Air-Cooled Condenser: Energy-efficient cooling solution

Advantages of FNH Air-Cooled Condenser
Fan motor with low noise and high air volume FNH Air-Cooled Condenser uses a professional fan motor with low noise, high air volume and smooth operation. This allows the condenser to not only dissipate heat effectively when working, but also maintain a low noise level to avoid interference with the surrounding environment, which is particularly suitable for places with high requirements for noise.

High-quality aluminum fins to improve heat exchange efficiency FNH Air-Cooled Condenser uses high-quality aluminum fins to ensure close contact between the copper tube and the fin, thereby achieving a significant heat dissipation effect. The excellent thermal conductivity and durability of the aluminum fins ensure the efficient heat exchange capacity of the condenser under long-term operation.

φ9.52 copper tube to increase the heat exchange area FNH Air-Cooled Condenser uses high-quality copper tubes with a diameter of φ9.52, which not only increases the heat exchange area, but also enhances the transmission strength of the refrigerant in the condenser. The excellent thermal conductivity of the copper tube enables the condenser to dissipate heat efficiently in a shorter time, thereby maintaining the optimal operating state of the refrigeration system.

Corrosion-resistant steel and spraying process, beautiful appearance and durability FNH Air-Cooled Condenser uses high-quality steel and adopts spray molding technology to ensure the corrosion resistance and long-term beauty of the condenser.

Advantages of Zhejiang Xinba Refrigeration Equipment Co., Ltd
As the manufacturer of FNH Air-Cooled Condenser, Zhejiang Xinba Refrigeration Equipment Co., Ltd, with its rich industry experience and advanced technology, continuously innovates product design to ensure that each FNH Air-Cooled Condenser can meet the requirements of high efficiency, long life and reliability. The company focuses on the production of refrigeration equipment and accessories, covering air coolers, condensers, refrigeration units and other fields. The products are widely used in food, chemical, pharmaceutical, hotel, electronics and other industries.

Xinba Refrigeration adheres to the business philosophy of "green, efficient, honest and pragmatic", and is committed to providing efficient and energy-saving refrigeration solutions on the basis of ensuring environmental sustainability. The company is well received by customers for its stable product quality and timely delivery time. By continuously optimizing production processes and improving technical levels, Xinba Refrigeration has always maintained its leading position in the industry, and also pays attention to professionalism in service, providing customers with a full range of pre-sales, in-sales and after-sales services to ensure that customers have no worries.

Application areas of FNH Air-Cooled Condenser
FNH Air-Cooled Condenser plays an important role in applications in many fields. Whether it is food storage, cooling of chemical products, air conditioning systems in the hotel and pharmaceutical industries, or heat dissipation of electronic equipment, FNH Air-Cooled Condenser can provide efficient and stable heat dissipation solutions. With the increasing requirements for environmental protection and energy saving, FNH Air-Cooled Condenser has become the preferred equipment in more and more industries with its advantages of green, energy saving and low noise.
