Product features;
The main engine adopts a fully enclosed scroll compressor with a single power of 2 ~ 8HP, thin wall design. suitable for wall mounting;
The condensing fan adopts large angle plastic blades and a 6-pole motor, which has large air volume and noise;
The inlet and outlet pipe interface of the unit is equipped with a stop valve, which is convenient for installation and maintenance.

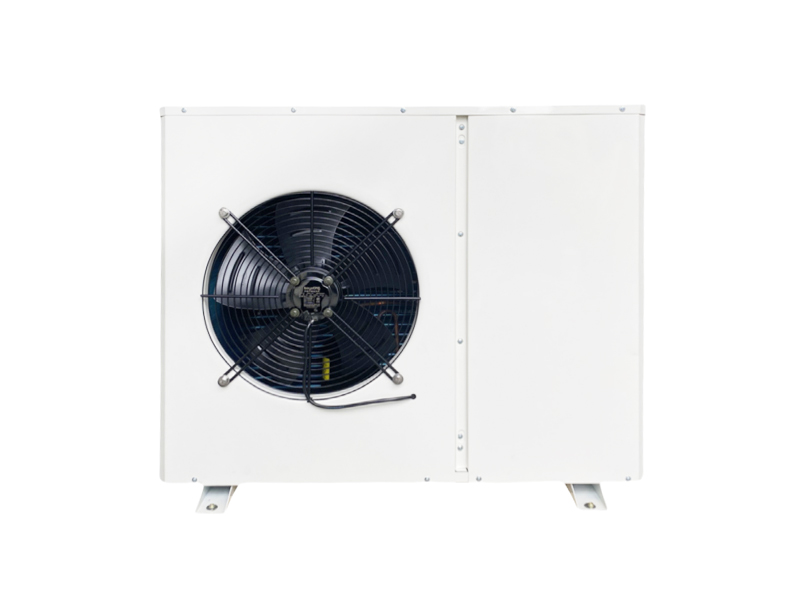

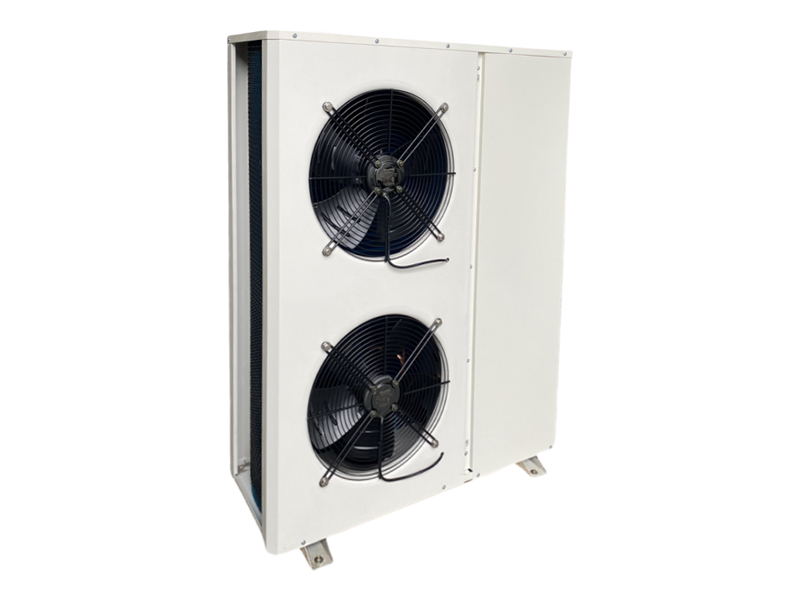

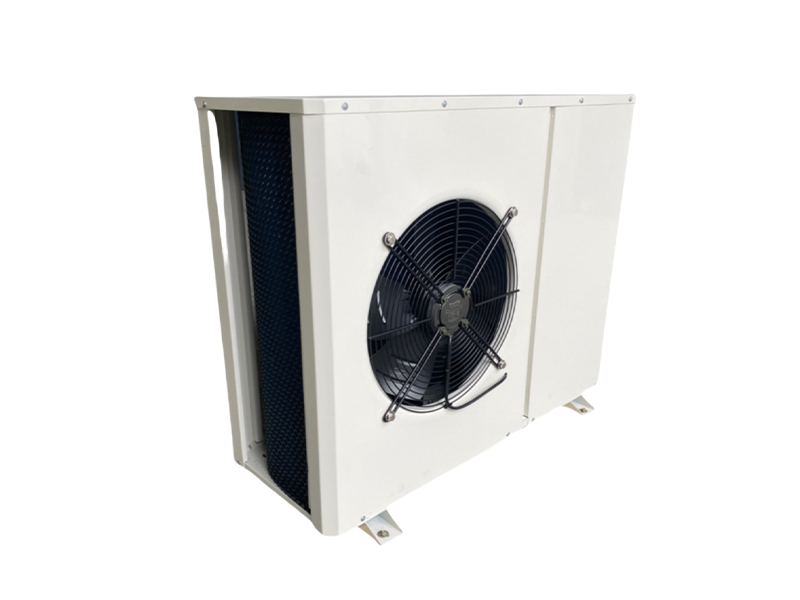

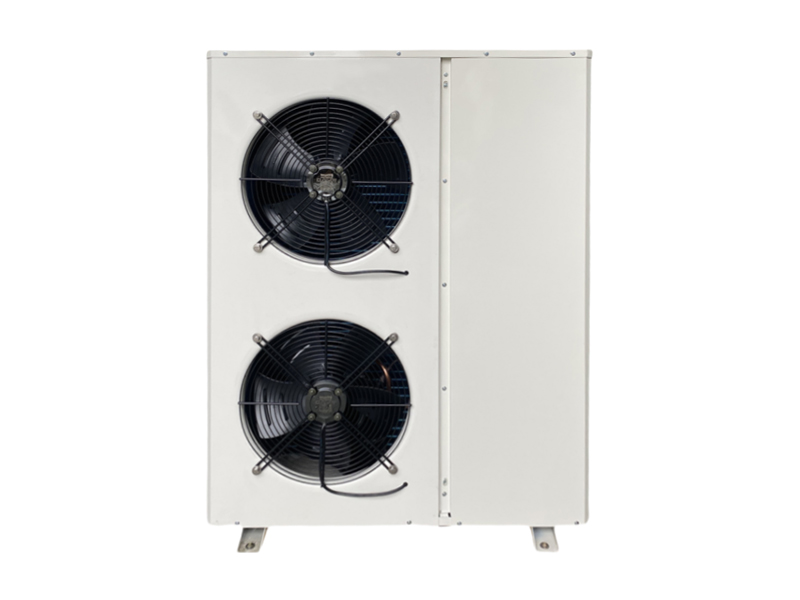

L-type Box Type Compression Condensing Unit (Commonly Used Type)
Medium and High Temperature Air-cooled Condensing Unit
Scroll Series
Model of units | XB-FNL-02MH | XB-FNL-03MH | XB-FNL-05MH | XB-FNL-06MH | XB-FNL-08MH | ||
Compressor model | ZB15KQ | ZB21KQ | ZB38KQ | ZB45KQ | ZB58KQ | ||
Applicable evaporation temperature (℃) | 0℃~-15℃ | ||||||
Refrigerant | R22 | ||||||
Power supply | 380V/50HZ | ||||||
Condenser | Quantity of Fan(only) | 1 | 1 | 2 | 2 | 2 | |
Air volume(m³/h) | 1*3200 | 1*3200 | 2*3200 | 2*3200 | 2*3200 | ||
Power of Fan(W) | 1*60 | 1*60 | 2*60 | 2*60 | 2*60 | ||
Compressor unit Cooling capacity | Evaporation temperature 0℃ | Cooling capacity(w) | 4775 | 6840 | 11200 | 13850 | 18100 |
Electric power(w) | 1615 | 2300 | 3570 | 4330 | 5500 | ||
Evaporation temperature -5℃ | Cooling capacity(w) | 3950 | 5710 | 9175 | 11150 | 14925 | |
Electric power(w) | 1630 | 2280 | 3525 | 4325 | 5490 | ||
Evaporation temperature -12℃ | Cooling capacity(w) | 2985 | 4230 | 6575 | 8560 | 10675 | |
Electric power(w) | 1660 | 2240 | 3490 | 4345 | 5440 | ||
Coupling | Tube coupling | Φ10 | Φ10 | Φ12 | Φ12 | Φ16 | |
Suction coupling | Φ16 | Φ16 | Φ19 | Φ19 | Φ22 | ||
Dimensions | (A)mm Length | 1020 | 1020 | 1020 | 1020 | 1020 | |
(B)mm Width | 420 | 420 | 420 | 420 | 420 | ||
(H)mm Height | 850 | 850 | 1250 | 1250 | 1250 | ||
Installation dimensions | (D)mm Length | 590 | 590 | 590 | 590 | 590 | |
(E)mm Width | 440 | 440 | 390 | 390 | 390 | ||
Unit standard configuration: compressor, condenser, reservoir, filter,solenoid valve, pressure control, pressure gauge,junction box, etc; |
Explain
1: The cooling capacity and electric power in the table are based on the ambient temperature of 32°C;
2: Configuration can be increased or decreased according to requirements;
Medium and High Temperature Air-cooled Condensing Unit
Model of units | XB-FNL-02MH | XB-FNL-03MH | XB-FNL-05MH | XB-FNL-06MH | XB-FNL-08MH | ||
Compressor model | ZB15KQE | ZB21KQE | ZB38KQE | ZB45KQE | ZB58KQE | ||
Applicable evaporation temperature (℃) | -5℃~-25℃ | ||||||
Refrigerant | R404A | ||||||
Power supply | 380V/50HZ | ||||||
Condenser | Quantity of Fan (only) | 1 | 1 | 2 | 2 | 2 | |
Air volume (m³/h) | 1*3200 | 1*3200 | 2*3200 | 2*3200 | 2*3200 | ||
Power of Fan (W) | 1*60 | 1*60 | 2*60 | 2*60 | 2*60 | ||
Compressor unit Cooling capacity | Evaporation temperature -15℃ | Cooling capacity(w) | 2550 | 3990 | 6750 | 7950 | 9850 |
Electric power(w) | 2000 | 2650 | 4370 | 5050 | 6630 | ||
Evaporation temperature -20℃ | Cooling capacity(w) | 2020 | 3280 | 5500 | 6540 | 7560 | |
Electric power(w) | 1980 | 2630 | 4350 | 5030 | 6610 | ||
Evaporation temperature -25℃ | Cooling capacity(w) | 1620 | 2680 | 4700 | 5650 | 6550 | |
Electric power(w) | 1960 | 2610 | 4330 | 5010 | 6580 | ||
Coupling | Tube coupling | Φ10 | Φ10 | Φ12 | Φ12 | Φ16 | |
Suction coupling | Φ16 | Φ16 | Φ19 | Φ19 | Φ22 | ||
Dimensions | Length (A)mm | 1020 | 1020 | 1020 | 1020 | 1020 | |
Width (B)mm | 420 | 420 | 420 | 420 | 420 | ||
Height (H)mm | 850 | 850 | 1250 | 1250 | 1250 | ||
Installation dimensions | Length (D)mm | 590 | 590 | 590 | 590 | 590 | |
Width (E)mm | 440 | 440 | 390 | 390 | 390 | ||
Unit standard configuration: compressor, condenser, reservoir, filter, solenoid valve, pressure control, pressure gauge, junction box, etc; |
Explain
1: The cooling capacity and electric power in the table are based on the ambient temperature of 32°C;
2: Configuration can be increased or decreased according to requirements;
L-type Box Type Compression Condensing Unit (Improved Version)
Medium And High Temperature Air-cooled Condensing Unit
Scroll Series
Model of units | XB-FNL-02MH | XB-FNL-03MH | XB-FNL-05MH | XB-FNL-05MH | XB-FNL-06MH | ||
Compressor model | ZB15KQ | ZB21KQ | ZB38KQ | ZB38KQ | ZB45KQ | ||
Applicable evaporation temperature (℃) | 0℃~-15℃ | ||||||
Refrigerant | R22 | ||||||
Power supply | 380V/50HZ | ||||||
Condenser | Quantity of Fan (only) | 1 | 1 | 1 | 2 | 1 | |
Air volume(m³/h) | 1*2700 | 1*3500 | 1*6400 | 2*3500 | 1*6400 | ||
Power of Fan(W) | 1*145 | 1*190 | 1*320 | 2*190 | 1*320 | ||
Compressor unit Cooling capacity | Evaporation temperature 0℃ | Cooling capacity | 4775 | 6840 | 11200 | 11200 | 13850 |
Electric power(w) | 1615 | 2300 | 3570 | 3570 | 4330 | ||
Evaporation temperature -5℃ | Cooling capacity | 3900 | 5710 | 9175 | 9175 | 11150 | |
Electric power(w) | 1630 | 2280 | 3525 | 3525 | 4325 | ||
Evaporation temperature -12℃ | Cooling capacity | 2985 | 4230 | 6575 | 6575 | 8560 | |
Electric power(w) | 1660 | 2240 | 3490 | 3490 | 4345 | ||
Coupling | Tube coupling | Φ10 | Φ10 | Φ12 | Φ12 | Φ12 | |
Suction coupling | Φ16 | Φ16 | Φ19 | Φ19 | Φ19 | ||
Dimensions | Length (A)mm | 960 | 1110 | 1110 | 1110 | 1110 | |
Width (B)mm | 470 | 520 | 520 | 520 | 520 | ||
Height (H)mm | 690 | 790 | 890 | 1250 | 990 | ||
Installation dimensions | Length (D)mm | 590 | 590 | 590 | 590 | 590 | |
Width (E)mm | 390 | 440 | 440 | 440 | 440 | ||
Unit standard configuration: compressor, condenser, reservoir, filter, solenoid valve, pressure control, pressure gauge, junction box, etc; |
Medium And High Temperature Air-cooled Condensing Unit
Scroll Series
Model of units | XB-FNL-02MH | XB-FNL-03MH | XB-FNL-05MH | XB-FNL-05MH | XB-FNL-06MH | ||
Compressor model | ZB15KQE | ZB21KQE | ZB38KQE | ZB38KQE | ZB45KQE | ||
Applicable evaporation temperature (℃) | -5℃~-25℃ | ||||||
Refrigerant | R404A | ||||||
Power supply | 380V/50HZ | ||||||
Condenser | Quantity of Fan (only) | 1 | 1 | 1 | 2 | 1 | |
Air volume(m³/h) | 1*2700 | 1*3500 | 1*6400 | 2*3500 | 1*6400 | ||
Power of Fan(W) | 1*145 | 1*190 | 1*320 | 2*190 | 1*320 | ||
Compressor unit Cooling capacity | Evaporation temperature -15℃ | Cooling capacity | 2550 | 3990 | 6750 | 6750 | 7950 |
Electric power(w) | 2000 | 2650 | 4370 | 4370 | 5050 | ||
Evaporation temperature -20℃ | Cooling capacity | 2020 | 3280 | 5500 | 5500 | 6540 | |
Electric power(w) | 1980 | 2630 | 4350 | 4350 | 5030 | ||
Evaporation temperature -25℃ | Cooling capacity | 1620 | 2680 | 4700 | 4700 | 5650 | |
Electric power(w) | 1960 | 2610 | 4330 | 4330 | 5010 | ||
Coupling | Tube coupling | Φ10 | Φ10 | Φ12 | Φ12 | Φ12 | |
Suction coupling | Φ16 | Φ16 | Φ19 | Φ19 | Φ19 | ||
Dimensions | Length (A)mm | 960 | 1110 | 1110 | 1110 | 1110 | |
Width (B)mm | 470 | 520 | 520 | 520 | 520 | ||
Height (H)mm | 690 | 790 | 890 | 1250 | 990 | ||
Installation dimensions | Length (D)mm | 590 | 590 | 590 | 590 | 590 | |
Width (E)mm | 390 | 440 | 440 | 440 | 440 | ||
Unit standard configuration: compressor, condenser, reservoir, filter, solenoid valve, pressure control, pressure gauge, junction box, etc; |
Explain
1: The cooling capacity and electric power in the table are based on the ambient temperature of 32°C;
2: Configuration can be increased or decreased according to requirements;
3: lf the semi hermetic compressor can be customized,please contact the sales agencies of sko cold chain company;
Model of units | XB-FNL-06MH | XB-FNL-08MH | XB-FNL-10MH | XB-FNL-12MH | XB-FNL-15MH | ||
Compressor model | ZB45KQ | ZB58KQ | ZB76KQ | ZB88KQ | ZB114KQ | ||
Applicable evaporation temperature (℃) | 0℃~-15℃ | ||||||
Refrigerant | R22 | ||||||
Power supply | 380V/50HZ | ||||||
Condenser | Quantity of Fan (only) | 2 | 2 | 2 | 2 | 4 | |
Air volume(m³/h) | 2*3500 | 2*4500 | 2*4500 | 2*6400 | 4*3500 | ||
Power of Fan(W) | 2*190 | 2*230 | 2*230 | 2*320 | 4*190 | ||
Compressor unit Cooling capacity | Evaporation temperature -0℃ | Cooling capacity | 13850 | 18100 | 24600 | 28400 | 36100 |
Electric power(w) | 4330 | 5500 | 7525 | 8200 | 10960 | ||
Evaporation temperature -5℃ | Cooling capacity | 11150 | 14925 | 20600 | 23450 | 29350 | |
Electric power(w) | 4325 | 5490 | 7175 | 8125 | 10880 | ||
Evaporation temperature -12℃ | Cooling capacity | 8560 | 10675 | 15550 | 17700 | 21800 | |
Electric power(w) | 4345 | 5440 | 7025 | 7900 | 9610 | ||
Coupling | Tube coupling | Φ12 | Φ16 | Φ16 unvalved | Φ19 unvalved | Φ19 unvalved | |
Suction coupling | Φ19 | Φ22 | Φ28 unvalved | Φ28 unvalved | Φ35 unvalved | ||
Dimensions | Length (A)mm | 1110 | 1110 | 1300 | 1450 | 1700 | |
Width (B)mm | 520 | 520 | 580 | 630 | 630 | ||
Height (H)mm | 1250 | 1290 | 1390 | 1390 | 1390 | ||
Installation dimensions | Length (D)mm | 590 | 590 | 770 | 870 | 555*555 | |
Width (E)mm | 440 | 440 | 500 | 550 | 570 | ||
Unit standard configuration: compressor, compressor exhaust angle valve, shock tube (10HP and above), condenser, liquid reservoir, filter, solenoid valve, pressure control, pressure gauge, junction box, etc; |
Explain
1: The cooling capacity and electric power in the table are based on the ambient temperature of 32°C;
2: Configuration can be increased or decreased according to requirements;
3: lf the semi hermetic compressor can be customized,please contact the sales agencies of sko cold chain company;
Model of units | XB-FNL-06MH | XB-FNL-08MH | XB-FNL-10MH | XB-FNL-13MH | XB-FNL-15MH | ||
Compressor model | ZB45KQE | ZB58KQE | ZB76KQE | ZB95KQE | ZB114KQE | ||
Applicable evaporation temperature (℃) | -5℃~-25℃ | ||||||
Refrigerant | R404A | ||||||
Power supply | 380V/50HZ | ||||||
Condenser | Quantity of Fan (only) | 2 | 2 | 2 | 2 | 4 | |
Air volume(m³/h) | 2*3500 | 2*4500 | 2*4500 | 2*6400 | 4*3500 | ||
Power of Fan(W) | 2*190 | 2*230 | 2*230 | 2*320 | 4*190 | ||
Compressor unit Cooling capacity | Evaporation temperature -15℃ | Cooling capacity | 7950 | 9850 | 14100 | 16800 | 19750 |
Electric power(w) | 5050 | 6630 | 8660 | 11200 | 13300 | ||
Evaporation temperature -20℃ | Cooling capacity | 6540 | 7560 | 11800 | 12300 | 14880 | |
Electric power(w) | 5010 | 6580 | 8610 | 11100 | 13200 | ||
Evaporation temperature -25℃ | Cooling capacity | 5650 | 6550 | 10300 | / | / | |
Electric power(w) | 4950 | 6530 | 8560 | / | / | ||
Coupling | Tube coupling | Φ12 | Φ16 | Φ16 unvalved | Φ19 unvalved | Φ19 unvalved | |
Suction coupling | Φ19 | Φ22 | Φ28 unvalved | Φ28 unvalved | Φ35 unvalved | ||
Dimensions | Length (A)mm | 1110 | 1110 | 1300 | 1450 | 1700 | |
Width (B)mm | 520 | 520 | 580 | 630 | 630 | ||
Height (H)mm | 1250 | 1290 | 1390 | 1390 | 1390 | ||
Installation dimensions | Length (D)mm | 590 | 590 | 770 | 870 | 555*555 | |
Width (E)mm | 440 | 440 | 500 | 550 | 570 | ||
Unit standard configuration: compressor, compressor exhaust angle valve, shock tube (10HP and above), condenser, liquid reservoir, filter, solenoid valve, pressure control, pressure gauge, junction box, etc; |
Explain
1: The cooling capacity and electric power in the table are based on the ambient temperature of 32°C;
2: Configuration can be increased or decreased according to requirements;
3: if the semi hermetic compressor can be customized,please contact the sales agencies of sko cold chain company;
L-type box-type compression condensing unit (improved)
Medium and High-Temperature Air-cooled Condensing Unit Semi-hermetic Series
Model of units | XB-FNL-15MH | XB-FNL-20MH | XB-FNL-22MH | XB-FNL-25MH | XB-FNL-30MH | ||
Compressor model | 4PES-15 | 4NES-20 | 4JE-22 | 4HE-25 | 4GE-30 | ||
Applicable evaporation temperature (℃) | -5°C~-15°C | ||||||
Refrigerant | R22 | ||||||
Power supply | 380V/50HZ | ||||||
Condenser | Quantity of Fan (only) | 4 | 4 | 4 | 4 | 4 | |
Air volume(m³/h) | 4*4500 | 4*4500 | 4*6400 | 4*6400 | 4*7300 | ||
Power of Fan(W) | 4*250 | 4*250 | 4*320 | 4*320 | 4*350 | ||
Compressor unit Cooling capacity | Evaporation temperature -0℃ | Cooling capacity | 29820 | 34570 | 38600 | 44550 | 51050 |
Electric power(w) | 9.9 | 10.6 | 13.1 | 15.1 | 17.85 | ||
Evaporation temperature -5℃ | Cooling capacity | 24200 | 28050 | 31320 | 36150 | 41500 | |
Electric power(w) | 9.16 | 9.96 | 12.1 | 14.1 | 16.53 | ||
Evaporation temperature -12℃ | Cooling capacity | 19330 | 22370 | 25020 | 28920 | 33270 | |
Electric power(w) | 8.35 | 9.17 | 11 | 12.75 | 15.1 | ||
Coupling | Tube coupling | Φ19 unvalved | Φ19 unvalved | Φ22 unvalved | Φ22 unvalved | Φ25 unvalved | |
Suction coupling | Φ42 unvalved | Φ42 unvalved | Φ42 unvalved | Φ54 unvalved | Φ54 unvalved | ||
Dimensions | Length (A)mm | 1880 | 2030 | 2030 | 2030 | 2130 | |
Width (B)mm | 700 | 700 | 800 | 800 | 900 | ||
Height (H)mm | 1190 | 1290 | 1290 | 1490 | 1490 | ||
Installation dimensions | Length (D)mm | 730730 | 755*755 | 755*755 | 755*755 | 755*755 | |
Width (E)mm | 660 | 660 | 760 | 760 | 860 | ||
Unit standard configuration: compressor, shock absorber, oil separator, condenser, liquid reservoir, filter, solenoid valve, differential pressure (optional), pressure control, pressure gauge, junction box, etc; |
Explain
1: The cooling capacity and electric power in the table are based on the ambient temperature of 32°C;
2: Configuration can be increased or decreased according to requirements;
