FNU Air-cooled Condenser Wholesale

Home / Products / Condenser / FNU Air-cooled Condenser

How Can We Help You ?

Contact us by sending an inquiry or by phone or e-mail.

+86-13857552236
[email protected] Contact Us
  • FNU Air-cooled Condenser
  • FNU Air-cooled Condenser
  • FNU Air-cooled Condenser
  • FNU Air-cooled Condenser

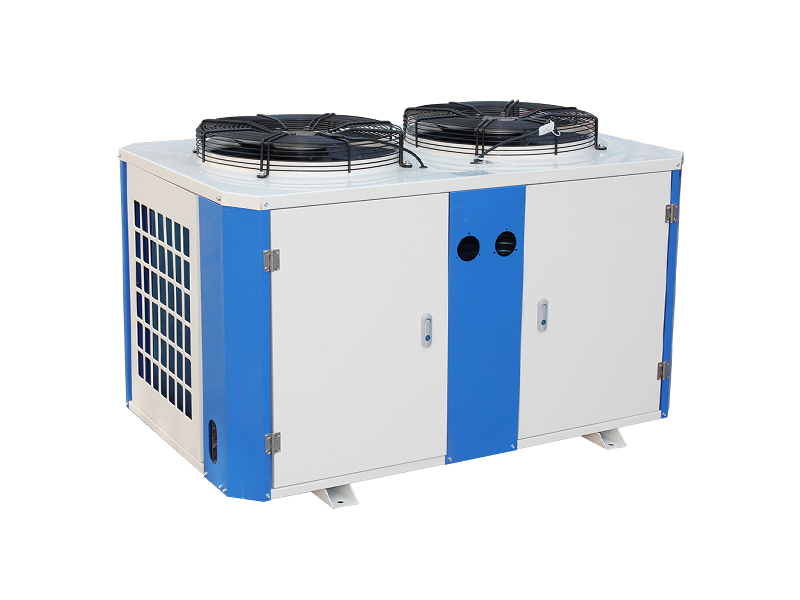

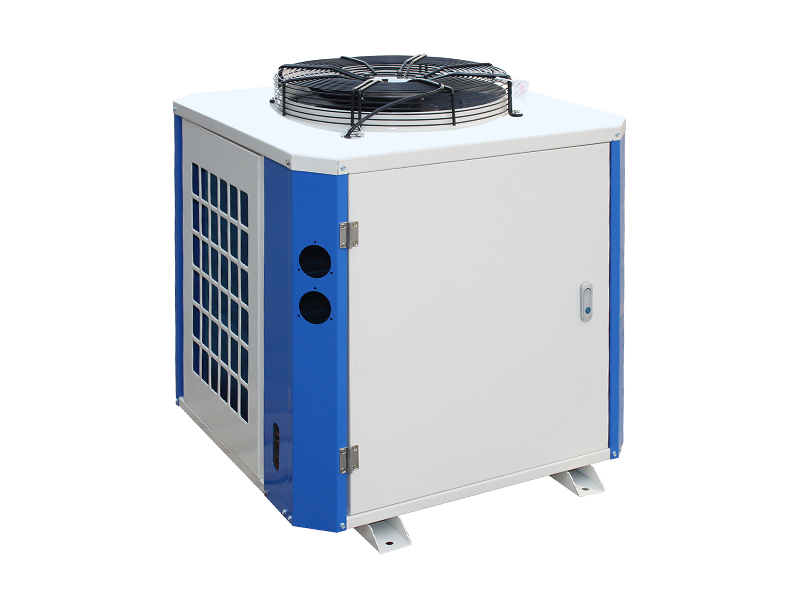

FNU Air-cooled Condenser

Contact Us
PREV：FNVB Air-cooled CondenserNEXT：FNV Air-cooled Condenser
  • Description
  • Feedback

  • FNU Air-cooled condenser is specially designed for heat dissipation in refrigeration equipment using refrigerants like Freon. It uses air convection to release the heat generated by the refrigerant during the condensation process, ensuring the refrigeration system functions normally. The high airtightness ensures no leakage even under high pressure, and the product is fitted with an external rotor fan, offering low noise operation.

    Main Technical Parameters Of XBU Box Type Air-cooled Condenser

    Model Heat exchang capacity (KW) Cooling Area (㎡) Fan
    Qty Blade Diameter (mm) Air volume (m³/h) Power (W) Voltage(V)
    XBU-13.5/45 13.5 45 1 500 6600 460 380
    XBU-17.8/60 17.8 60 2 400 2x4000 2x230 380
    XBU-23.6/80 23.6 80 2 450 2x4700 2x280 380
    XBU-29.8/100 29.8 100 2 500 2x6600 2x460 380
    XBU-34.6/120 34.6 120 2 500 2x6600 2x460 380
    XBU-40.4/140 40.4 140 2 550 2x8660 2x650 380
    XBU-46.2/160 46.2 160 2 550 2x8660 2x650 380
    XBU-52.7/180 52.7 180 2 600 2x10600 2x860 380
    XBU-60.8/200 60.8 200 2 600 2x10600 2x860 380



    Appearance And Installation Dimensions Of XBU Box Air-cooled Condenser

    Model L H W A B Inlet tube(φmm) Back trachea(φmm)
    XBU-13.5/45 800 645 860 740 740 φ19 φ16
    XBU-17.8/60 1150 730 830 730 1030 φ22 φ19
    XBU-23.6/80 1350 830 830 730 1230 φ25 φ19
    XBU-29.8/100 1350 730 830 730 1230 φ28 φ19
    XBU-34.6/120 1530 830 830 730 1410 φ28 φ19
    XBU-40.4/140 1530 930 830 730 1410 φ32 φ22
    XBU-46.2/160 1590 1030 830 730 1470 φ32 φ22
    XBU-52.7/180 1890 1030 830 730 1770 φ32 φ22
    XBU-60.8/200 2050 1030 830 730 1930 φ32 φ22



Related Products

About
Zhejiang Xinba Refrigeration Equipment Co., Ltd.
Zhejiang Xinba Refrigeration Equipment Co., Ltd. is located in the beautiful city of Zhejiang Province, close to the Yongjin Expressway, Shangsan Expressway, and Shaotai Expressway under construction, with a developed economy and convenient transportation. As a China FNU Air-cooled Condenser manufacturers and wholesale FNU Air-cooled Condenser factory, The company specializes in the production of refrigeration equipment and accessories such as air coolers, condensers, refrigeration units, etc. With rich professional knowledge and design experience, it constantly seeks innovation and change in technology, strictly requires product quality, and strives to provide the best quality refrigeration products and accessories for the fields of refrigeration systems such as food, chemicals, hotels, pharmaceuticals, electronics, vegetables, flowers, etc. It is well received for its stable quality and timely delivery, and we sincerely provide you with high-quality services with a professional spirit, so that you have no worries. We uphold the business philosophy of "green, efficient, honest and pragmatic", and achieving harmony between the social environment and interests has always been our unremitting pursuit. It has always been our unshirkable responsibility to be responsible for society, customers, and company employees. Looking to the future, we will continue to promote the innovation and development of refrigeration equipment and satisfy customers with high-quality services.
News
Condenser Industry Knowledge

FNU Air-Cooled Condenser: A reliable choice for efficient refrigeration
As an enterprise in the field of refrigeration equipment manufacturing, Zhejiang Xinba Refrigeration Equipment Co., Ltd. provides high-quality refrigeration equipment and accessories for a variety of industries such as food, chemicals, hotels, medicine, electronics, vegetables, and flowers with rich professional knowledge and design experience. Among them, FNU Air-Cooled Condenser plays a vital role in the refrigeration system with its excellent performance, stable quality and efficient heat dissipation capacity.

Zhejiang Xinba Refrigeration Equipment Co., Ltd has always adhered to the business philosophy of "green, efficient, honest and pragmatic", driven by technological innovation, and is committed to providing customers with high-quality refrigeration products and accessories. The company's products cover air coolers, condensers, refrigeration units, etc., and are widely used in various refrigeration systems.

Today, with the gradual improvement of environmental awareness, Zhejiang Xinba has always pursued the harmonious coexistence of social environment and corporate interests. The company strictly requires quality control in the process of product design and manufacturing, and continuously promotes technological innovation to ensure that every product can meet customer needs and provide users with worry-free services.

Core advantages of FNU Air-Cooled Condenser
FNU Air-Cooled Condenser is a product of Zhejiang Xinba Refrigeration Equipment Co., Ltd. It is designed for refrigeration equipment using refrigerants. It relies on air convection to release the heat generated during the condensation process to ensure the normal operation of the refrigeration system. Its core advantages are reflected in the following aspects:

FNU Air-Cooled Condenser uses high-quality aluminum fins and φ9.52 high-quality copper tubes. This design ensures close contact between the fins and the copper tubes, greatly improving the heat exchange efficiency. The high-quality copper tubes not only increase the heat exchange area of ​​the condenser, but also enhance the strength of the refrigerant in the tube, allowing the equipment to maintain efficient operation under high pressure.

The product has extremely high air tightness and can prevent leakage even under high pressure conditions, providing a guarantee for the stable operation of the refrigeration system. This feature is especially suitable for precision fields such as medicine and electronics that require high standards of operation.

FNU Air-Cooled Condenser is equipped with a professional outer rotor fan motor, which has the characteristics of low noise, large air volume and smooth operation. This not only improves the working efficiency of the equipment, but also brings a quieter environment for the use scene, which is very suitable for the use needs of hotels and residential areas.

Zhejiang Xinba uses high-quality steel and adopts spraying technology to ensure that the product shell is not easy to corrode, while giving it a beautiful and elegant appearance design. Whether in food cold storage or flower preservation environment, this design can maintain excellent performance during long-term use.

The wide applicability of FNU Air-Cooled Condenser makes it an indispensable equipment in the refrigeration industry. Whether in food refrigeration systems that require efficient heat dissipation, or in the chemical and pharmaceutical industries that require precise temperature control, this condenser can provide reliable heat dissipation support. In addition, its environmental protection, high efficiency and durability also give it a greater market prospect in the current wave of green refrigeration technology.

Zhejiang Xinba Refrigeration Equipment Co., Ltd is well aware of the importance of high-quality service, and is always customer-oriented from product design to after-sales support. The company has established a complete technical service system and has technical service centers and branches in many regions to provide customers with comprehensive technical support and service guarantees.
